If you are unsure which software version is installed in your vehicle, this guide is perfect for you. With just a few simple steps, you will know which software version you need for the update. You can download all updates from this link.
| Model ID Information | ||
| 1. Press and hold the Volume knob, then press and hold the Entertainment and Favorites buttons at the same time for 3-5 seconds and the Factory /Service Inspection screen will appear. | CX-5 and CX-9 |
Except CX-5 and CX-9 |
| 2. Select Service Information |  |
|

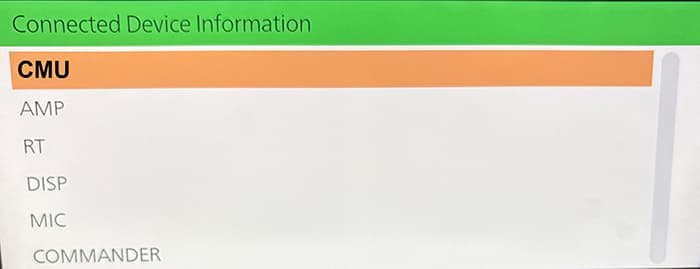

| 3. Select Connected Device Information |  |
|
4. Select Module
|
Example of CMU selection shown |
|
| 5. See Model ID A – Model ID B – Software Version |

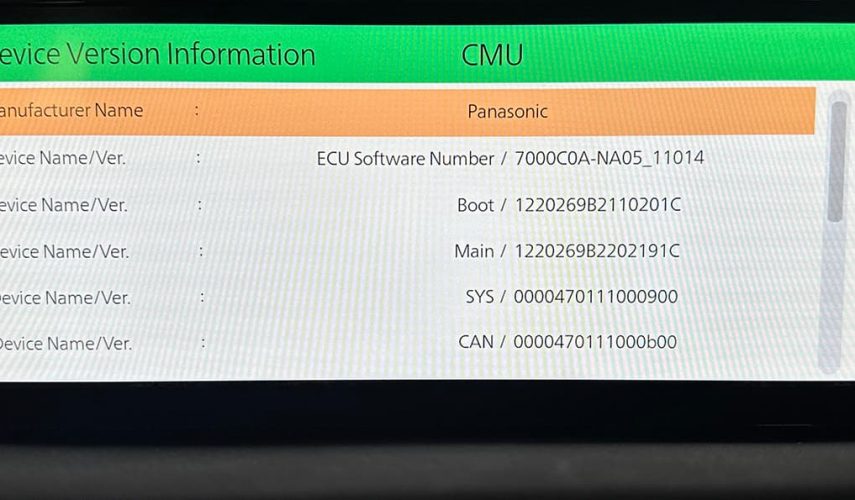

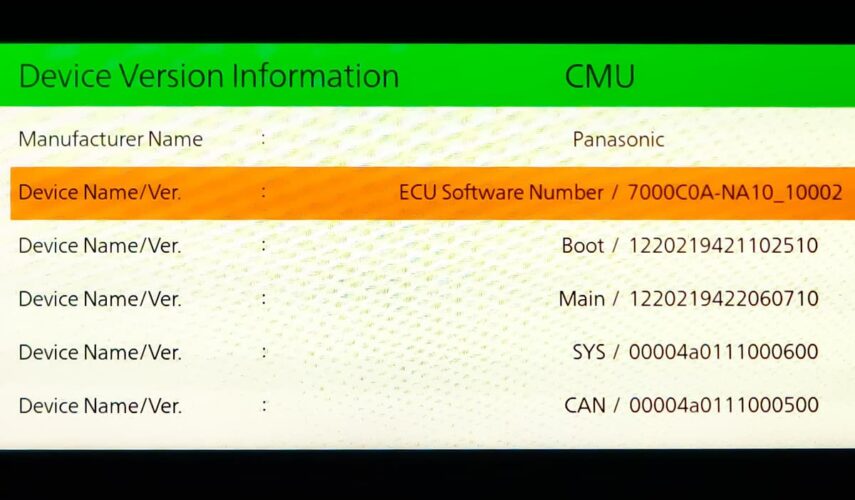

CMU Model ID is shown in blue box. Software version in pink box. |
|
RT Model ID is shown in blue box. Software version in pink box. |
||
|

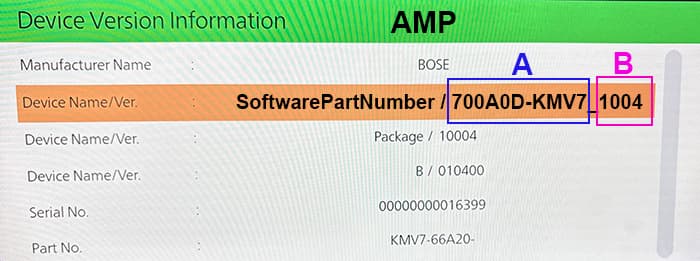

AMP Model ID is shown in blue box. Software version in pink box.
|
||
